產品中心
激光伺服控制器 PI200
PI200是一款帶有PI2環路濾波器的激光伺服控制器。
PI200 Setpoint -2.5 V to 2.5 V /  800 mHz - 800 Hz
PI200-T Setpoint -2.5 V to 2.5 V /  8 mHz - 8 Hz
PI200-ZS Setpoint 0 V /  800 mHz - 800 Hz
PI200-T-ZS Setpoint 0 V /  8 mHz - 8 Hz
產品特點
典型應用
相關文件
產品介紹

PI200是一款帶有PI2環路濾波器的激光伺服控制器。


Characterization

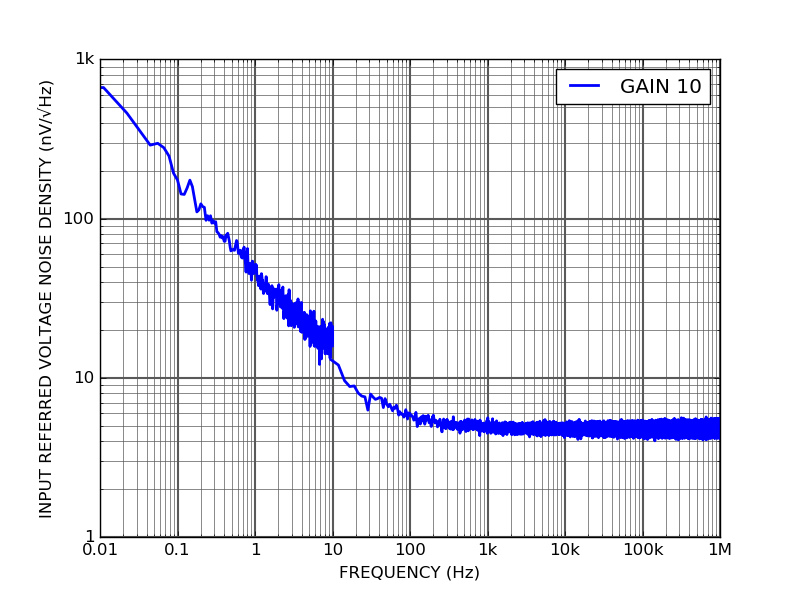

Input referred voltage noise
Input voltage noise measured for a gain of 10 between the input and the error signal output.


PI200 input referred voltage noise
Transfer functions
Error signal

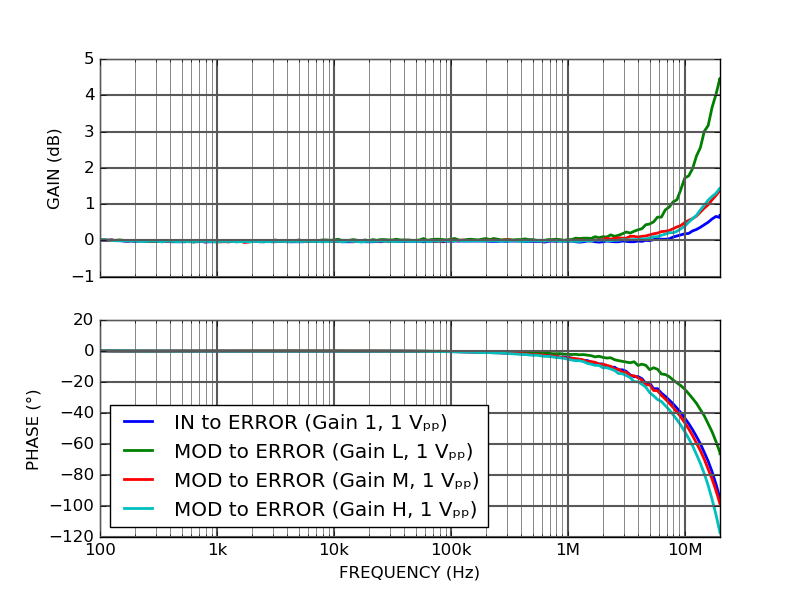

Bode plot of the transfer functions from the signal and modulation inputs to the error output:

PI200 error signal transfer function
Fast output

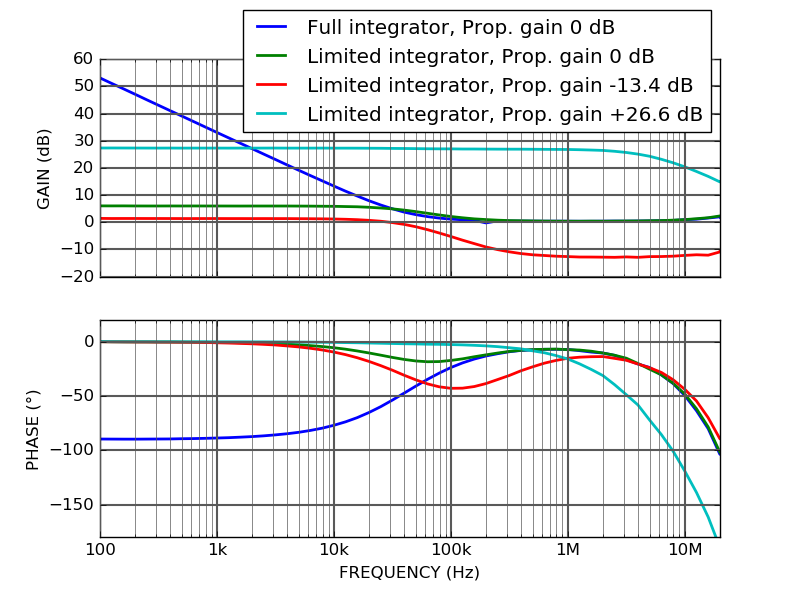

Transfer functions between the input and the fast output. Fast integrator gain is set to its minimum value (47 kHz). Global gain is -20 dB and input signal is 150 mVpp.

PI200 fast output transfer function


產品型號及主要指標

Model PI200 PI200-T
Servo Control bandwidth 5 MHz 5 MHz
Loop delay 20 ns 20 ns
Slow integrator frequency range 800 mHz to 800 Hz 8 mHz to 8 Hz
Fast integrator frequency range 47 kHz to 4.7 MHz 47 kHz to 4.7 MHz
Output voltage noise(0 dB gain) 5 nV/√Hz 5 nV/√Hz
Input voltage range -2 V to 2 V -2 V to 2 V
Input impedance 50 Ω 50 Ω
Output voltage range(50 Ω) -2 V to 2 V -2 V to 2 V
Power supply
Positive supply voltage 4.75 V to 6 V 4.75 V to 6 V
Negative supply voltage -6 V to -4.75 V -6 V to -4.75 V
Supply current per rail 220 mA 220 mA
Quiescent current per rail 45 mA 45 mA
Other
Outside dimensions 75 mm x 60 mm x 14 mm 75 mm x 60 mm x 14 mm
Weight 40 g 40 g
Operating temperature 0 °C to 50 °C 0 °C to 50 °C


產品選型：

PI200 Setpoint -2.5 V to 2.5 V / Slow integrator 800 mHz - 800 Hz
PI200-T Setpoint -2.5 V to 2.5 V / Slow integrator 8 mHz - 8 Hz
PI200-ZS Setpoint 0 V / Slow integrator 800 mHz - 800 Hz
PI200-T-ZS Setpoint 0 V / Slow integrator 8 mHz - 8 Hz
